Some woodworking, then?

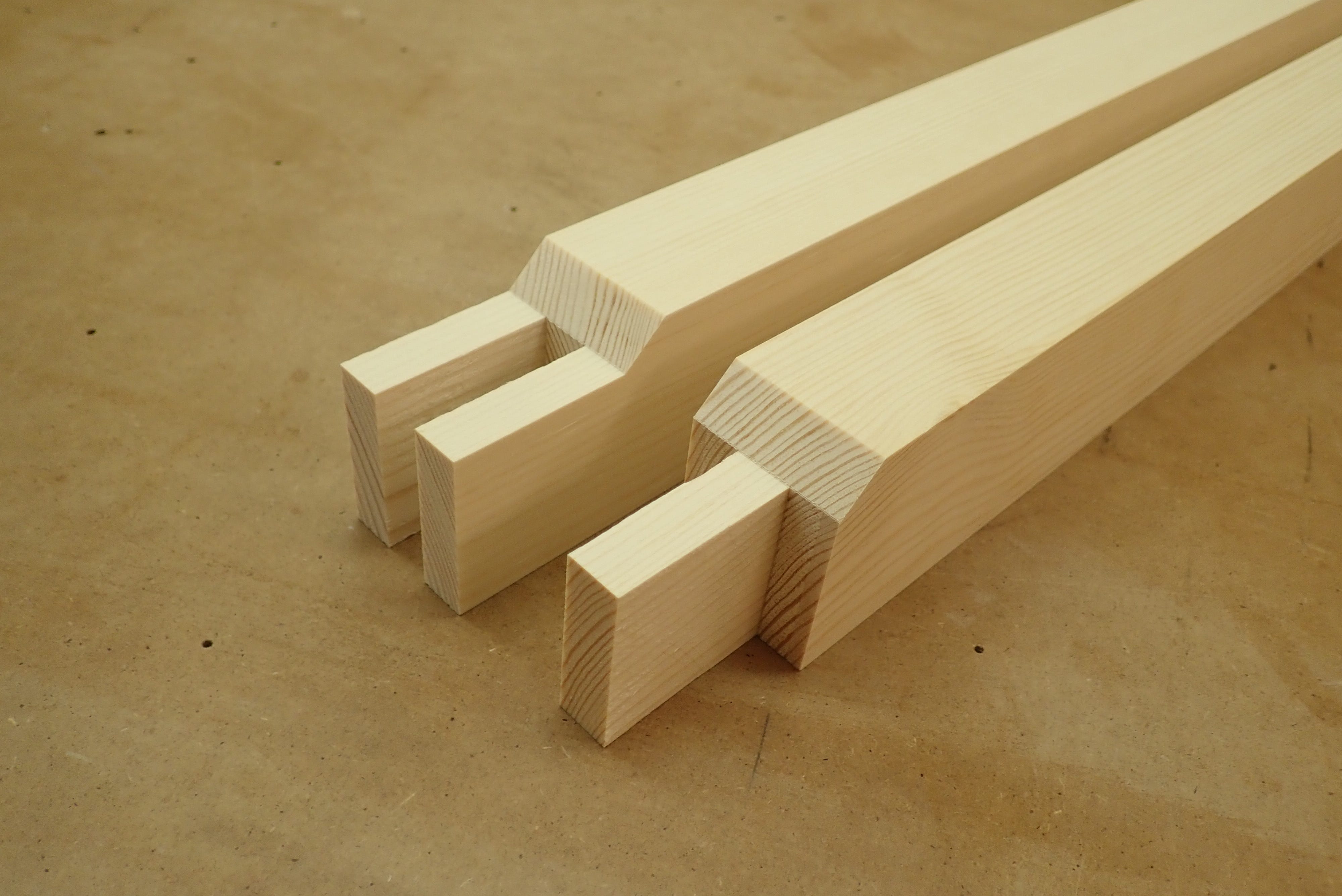

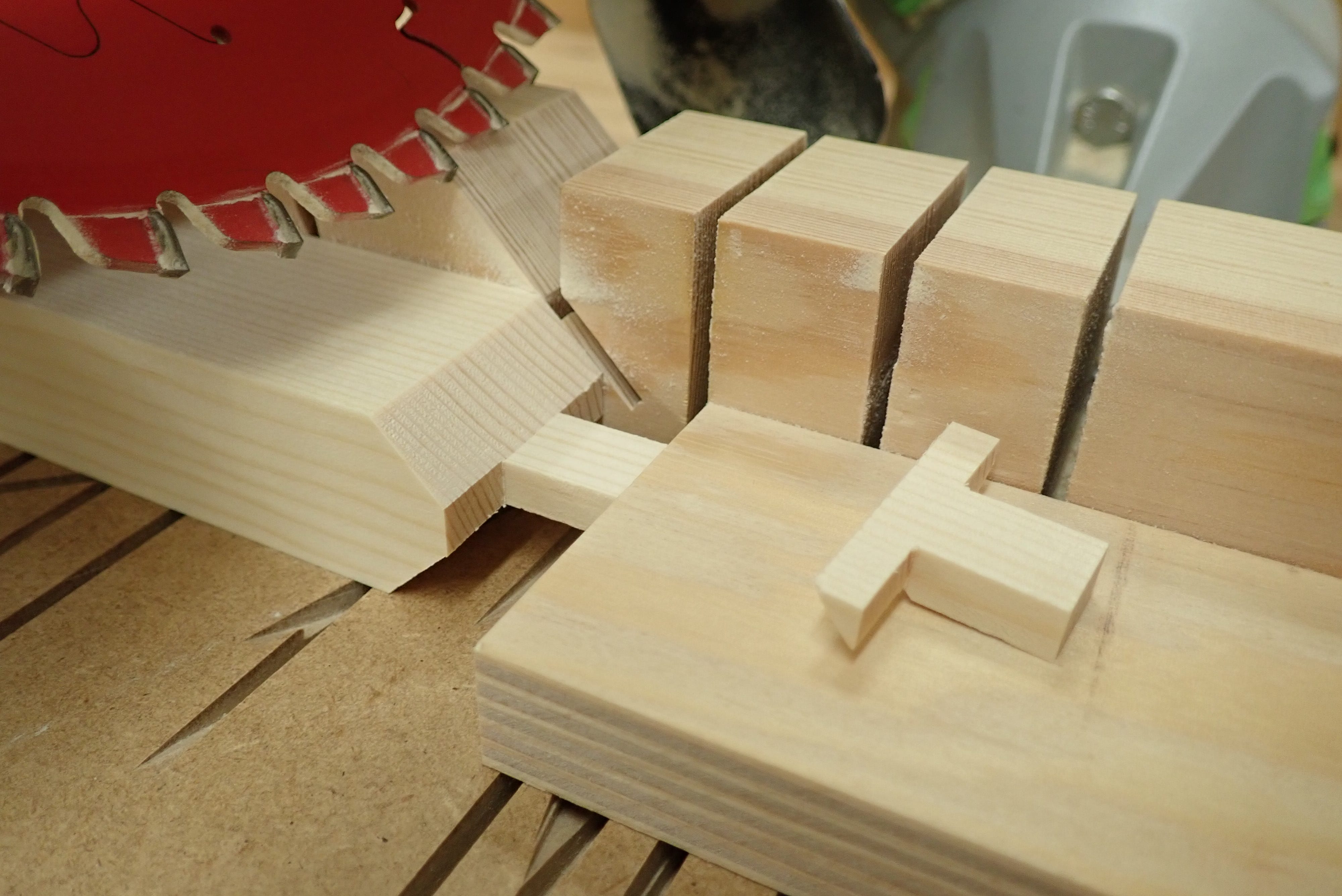

In previous installments I’ve talked about the basics; from stock prep, via mortising and cutting tenons to glueing up frames. Bread & butter work for a woodworker — or “enough for salt in the porridge” as we would say on our side of the North Sea. Today I would like to show you the (in my opinion) easiest and most versatile corner joint. Here’s what it looks like:

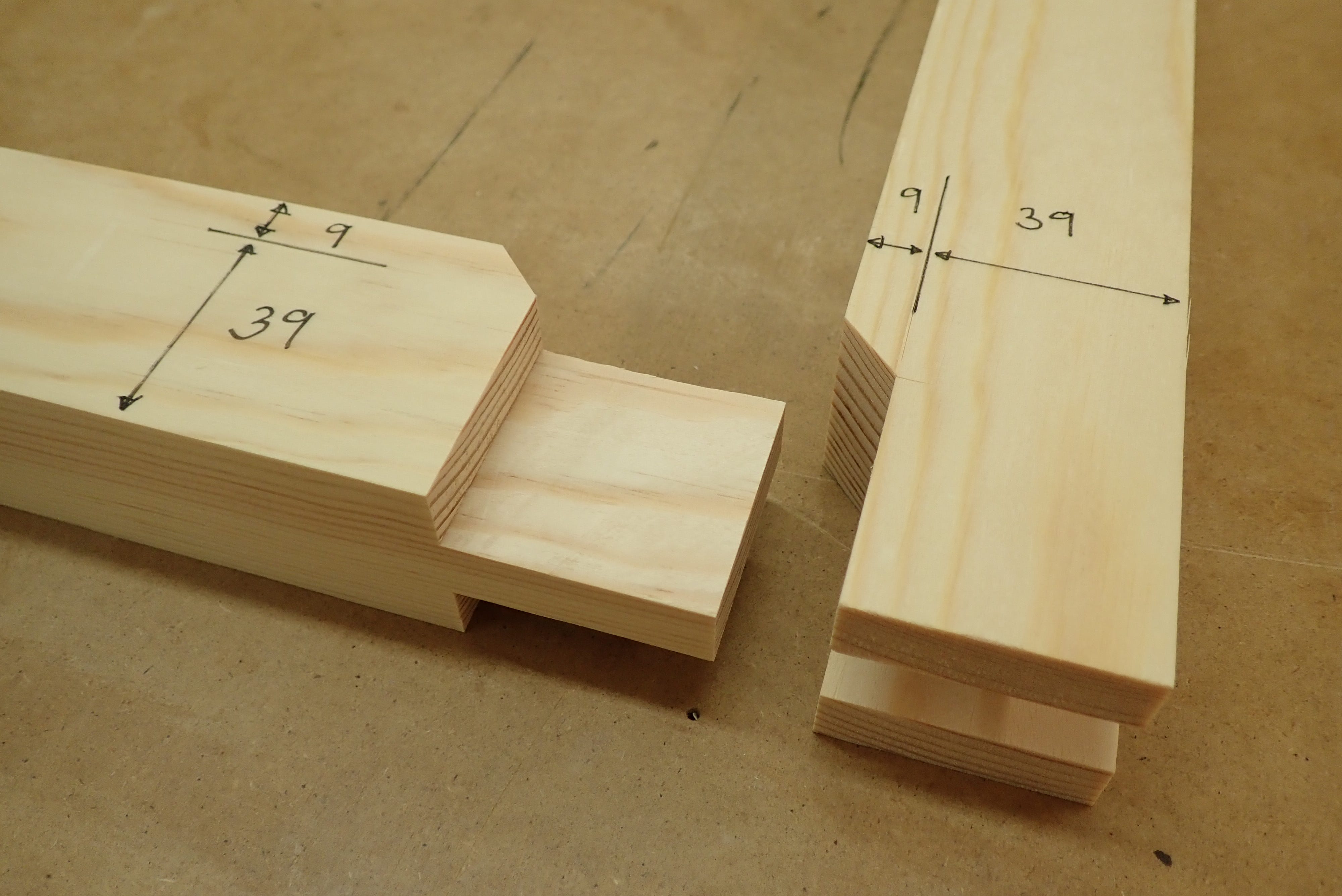

I guess you could describe it as an open mortise & tenon corner joint with a mitered (inside) section. There are a surprising number of ways to join two sticks at an angle; this is one of the easier ones to understand. The width of the sticks is divided into two parts: The lion’s share of it is used to accommodate the mortise and tenon (the structural joint), while a smaller, inside part is set aside for a profile, a rebate for a pane of glass or a dado for a floating panel. The two sections of the width are separate; they do not interfere with each other.

9 + 39 = 48 mm (i.e. 2” planed) — traditional woodworking sizes are not randomly arrived at :-)

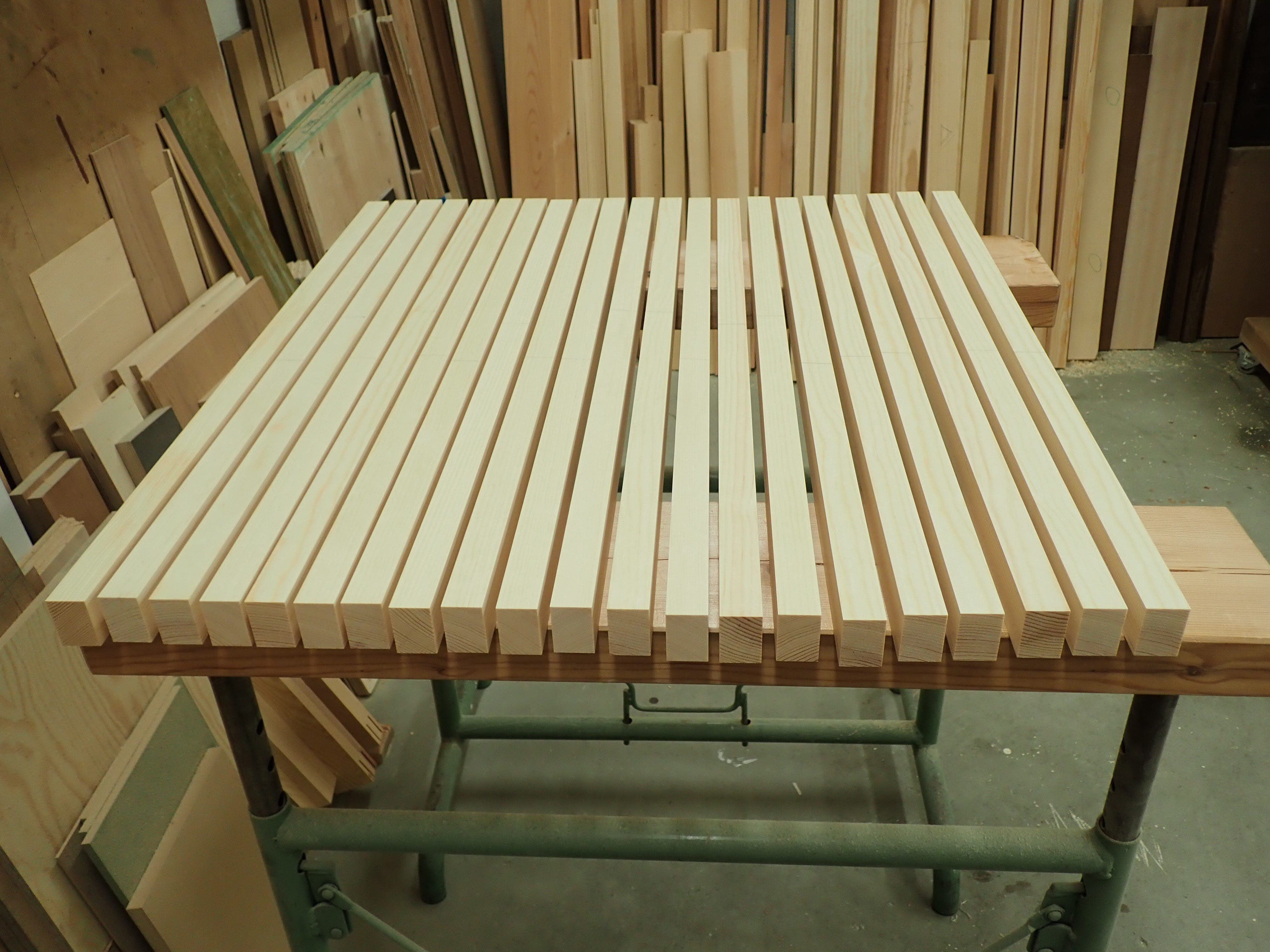

I cut all the joinery with the sticks still ‘in the square’. This makes for easier marking and machining. The profile and rebate can wait. These windows, or glass-frames as I prefer to call them, each have a pair of horizontal muntins or glazing bars. They need their own tiny joinery; a small tenon — more of a locating nub — and mitered shoulders just like the bigger, proper corner joints. Let me quickly show you how I made them. First: muntin sticks dimensioned and cut to final length.

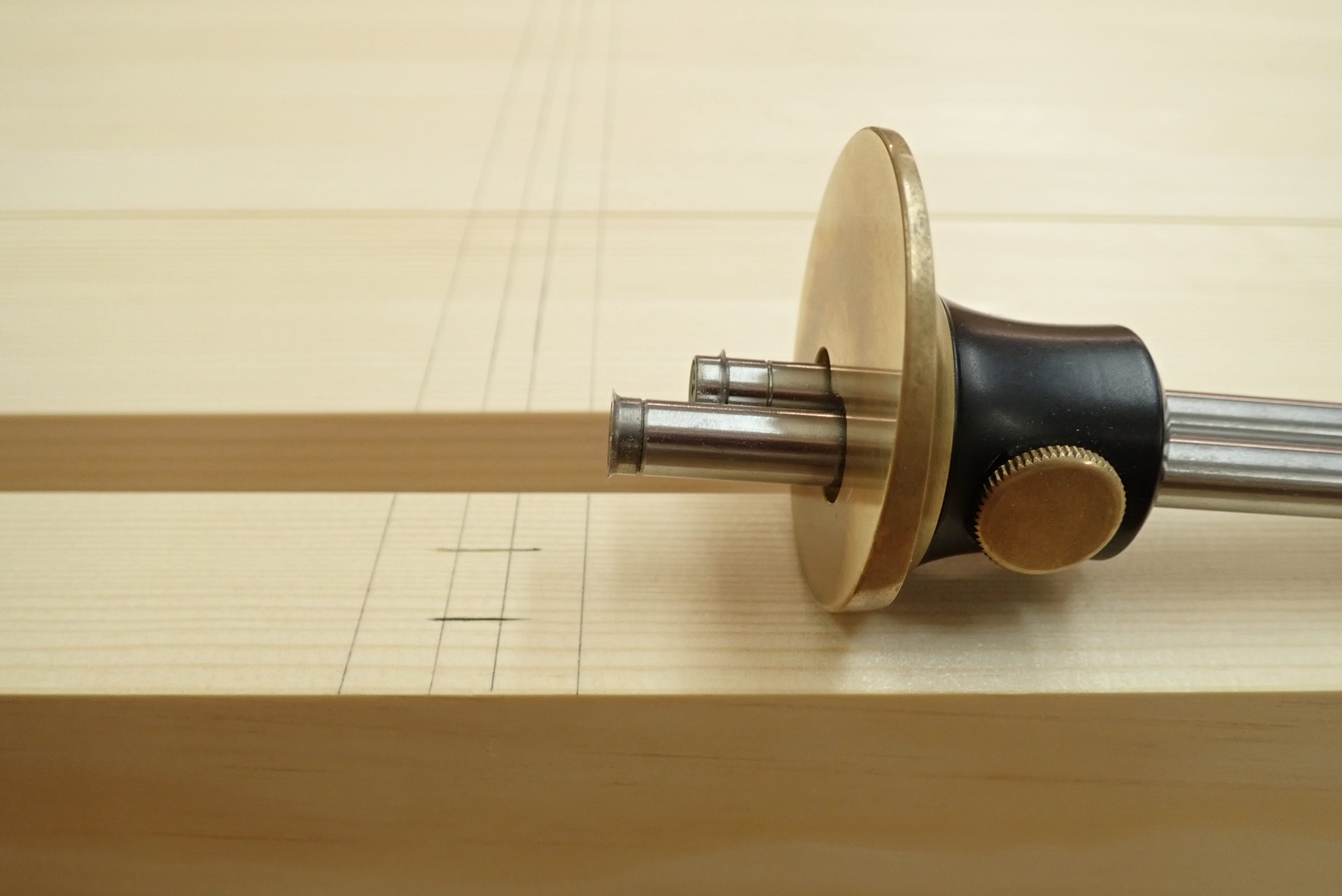

Then: stiles marked for mortise and mitered shoulders.

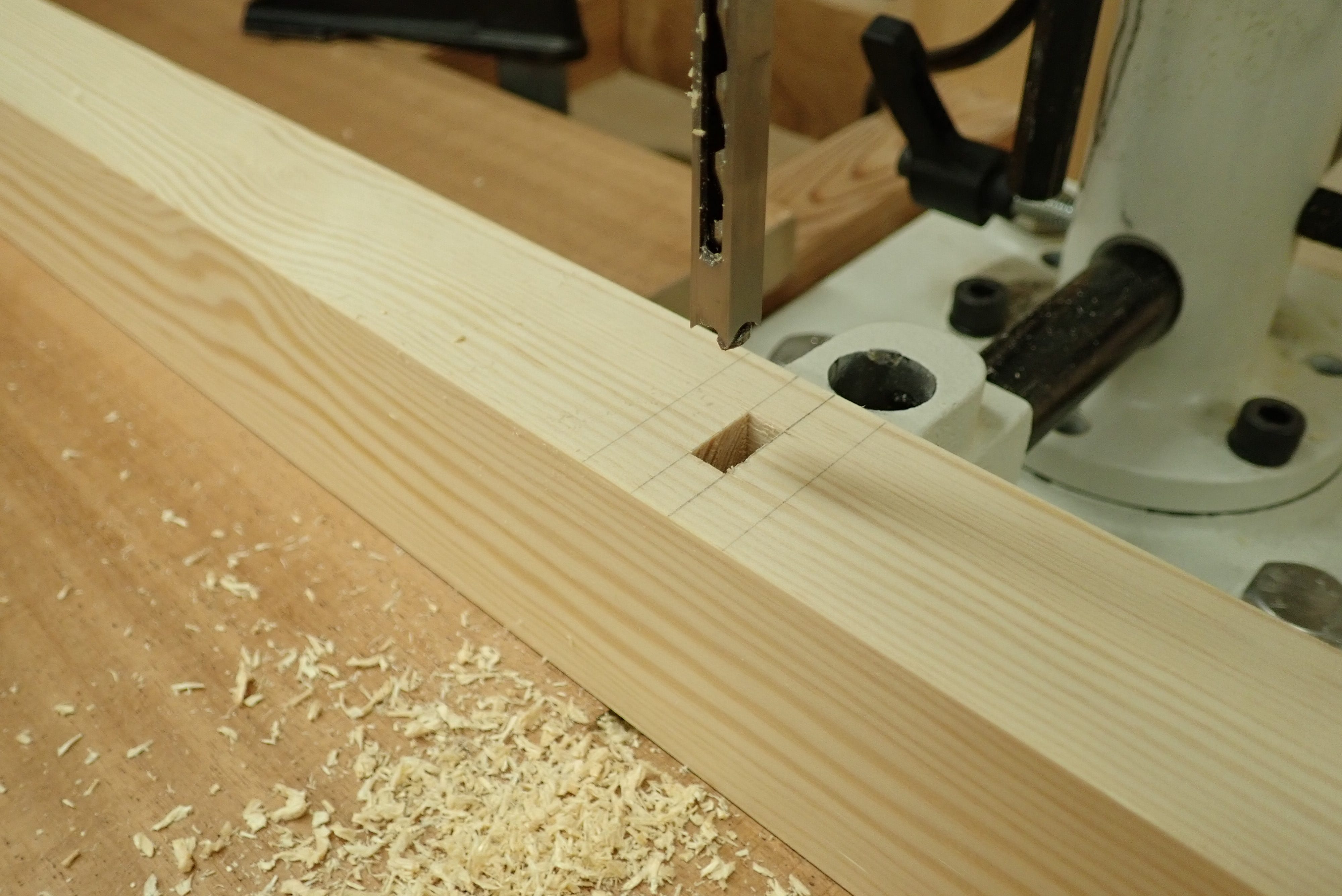

A small mortise (6 x 12 mm) for the muntin tenon.

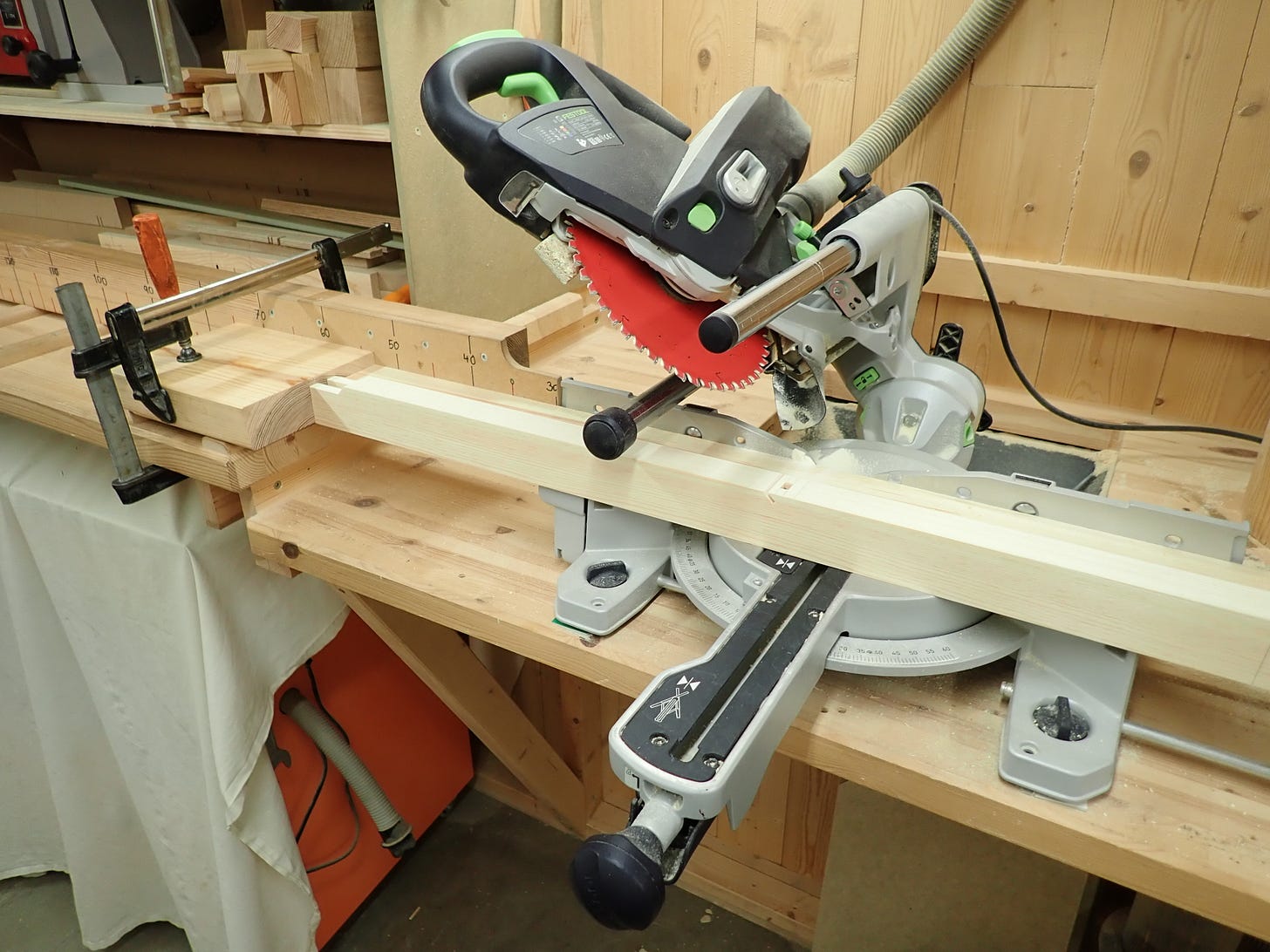

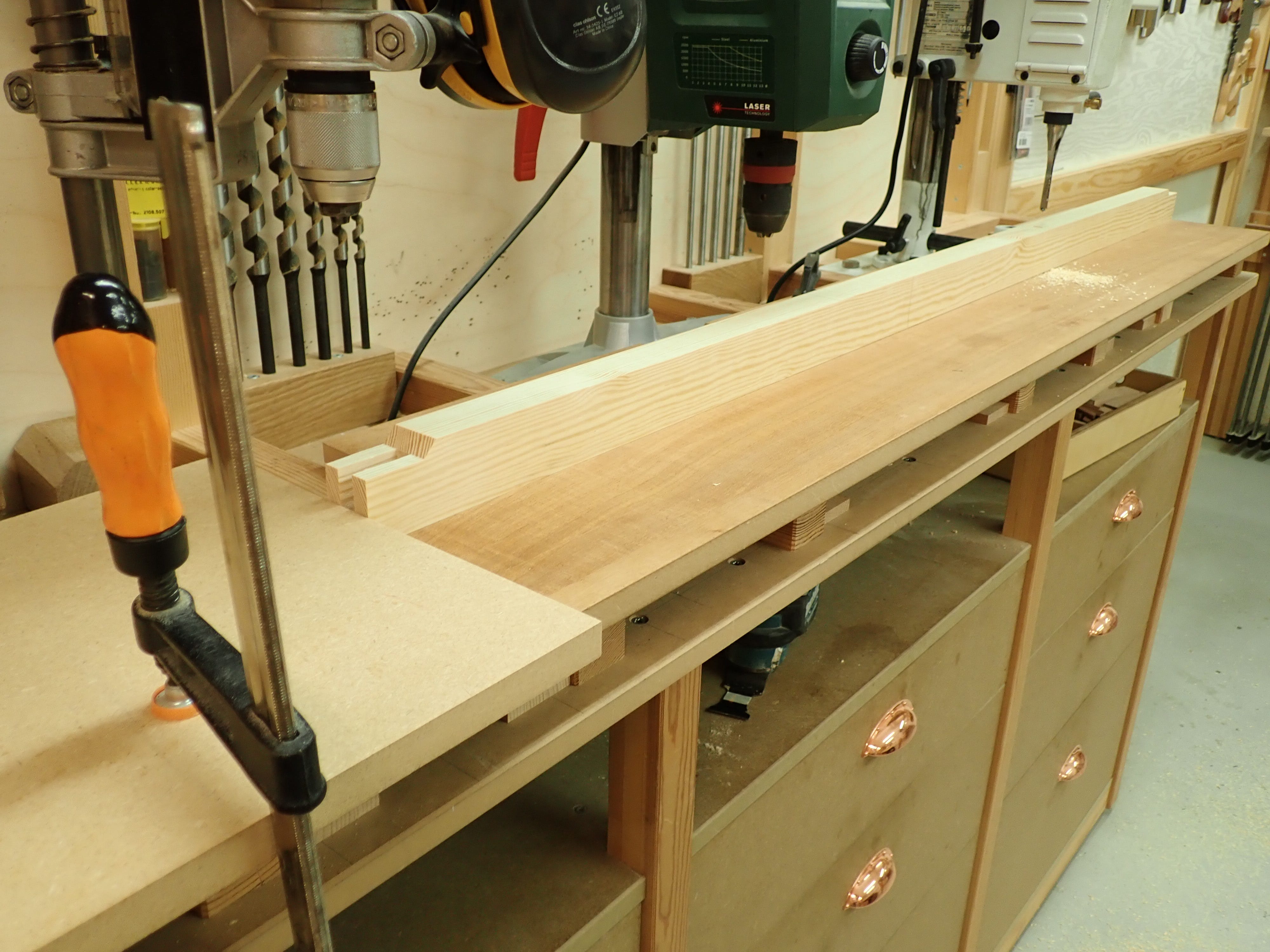

I clamped in place a piece of scrap as a stopper-block. Fences and stopper-blocks means you don’t have to eyeball it each time; you gain accuracy and repeatability — and don’t have to rely on markings.

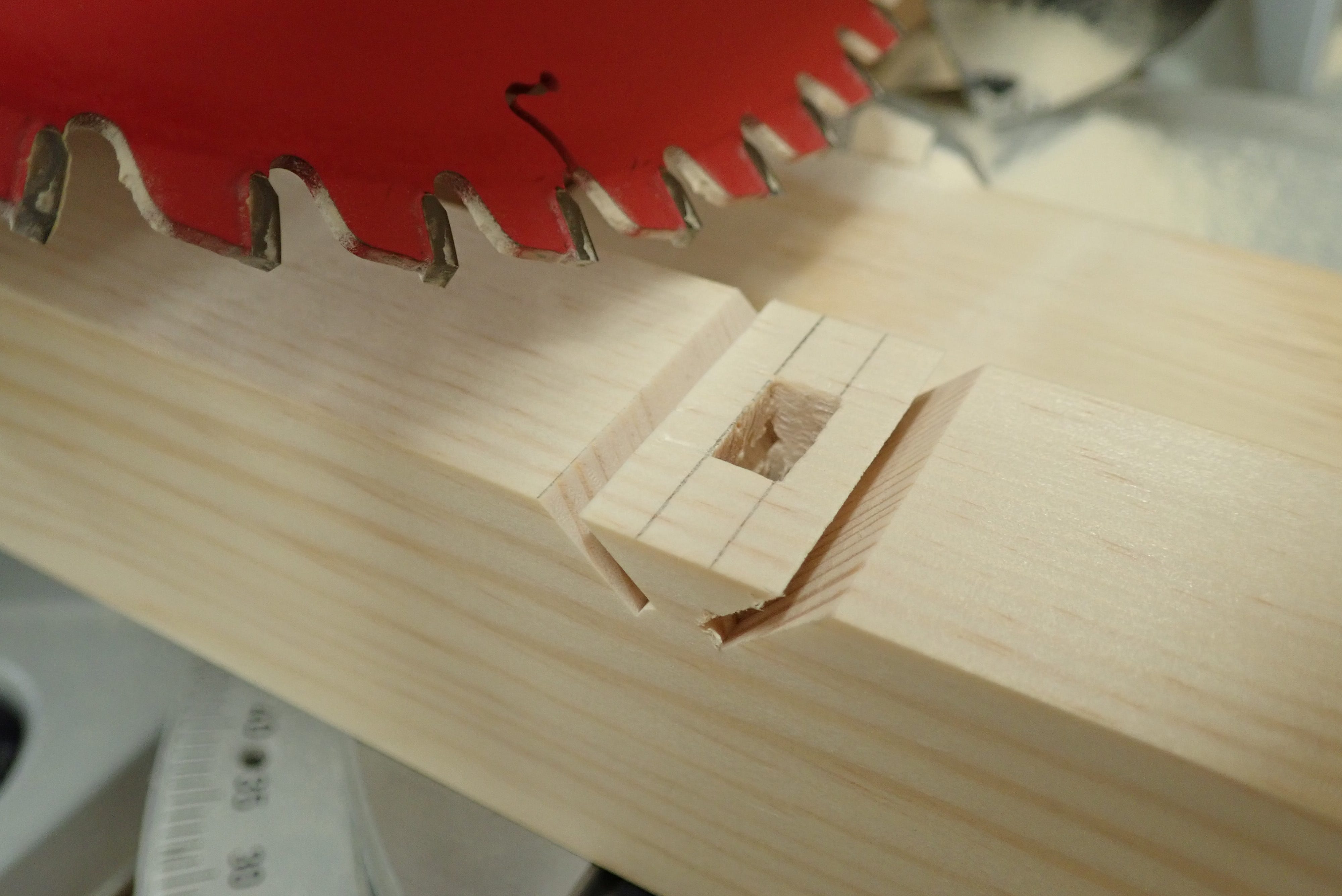

The same applies when cutting the mitered shoulders on each side of the mortise — clamping a piece of wood in the right spot saves a lot of hassle.

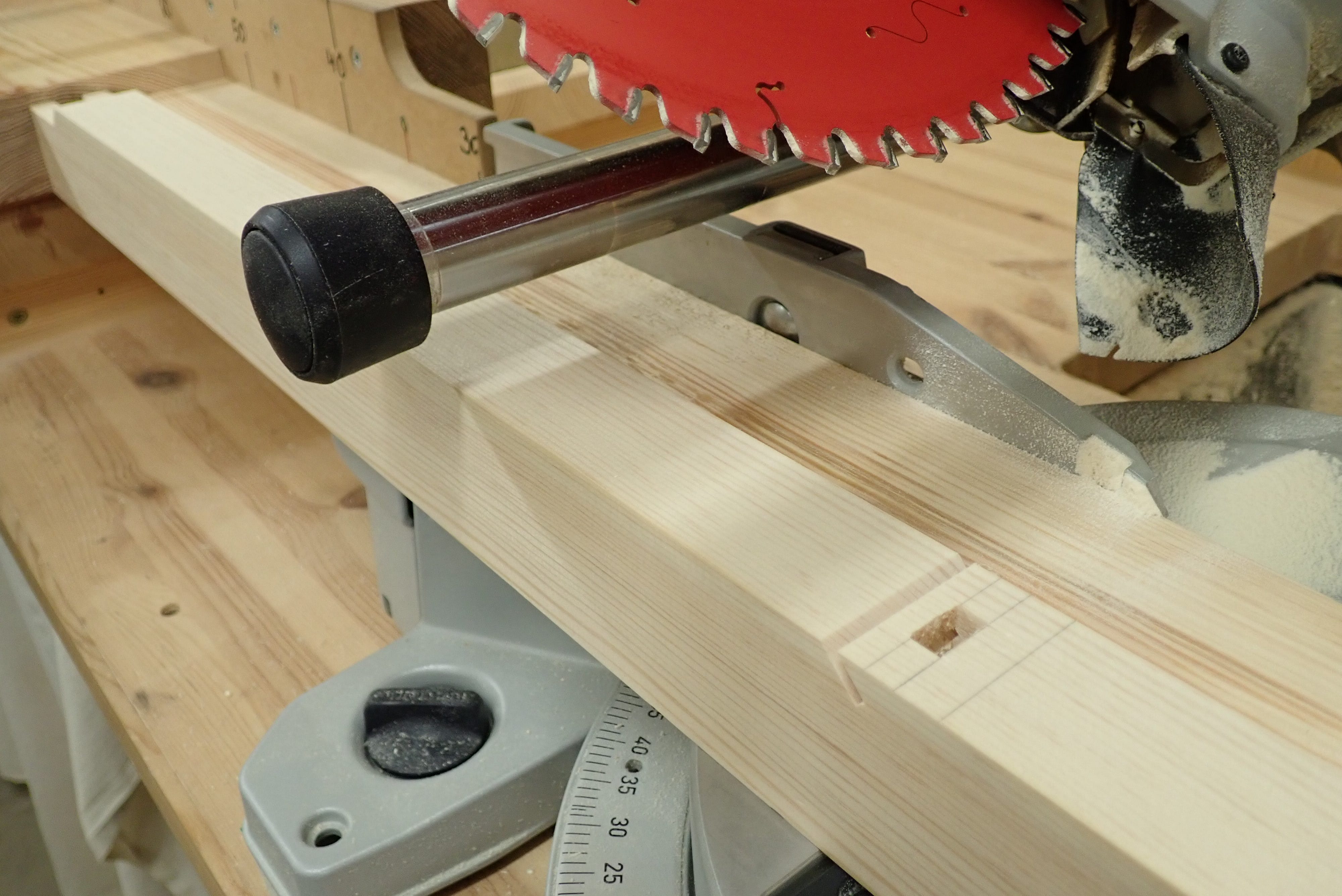

Depth-stop on mitre saw engaged!

Just turn the stick around to cut the other shoulder.

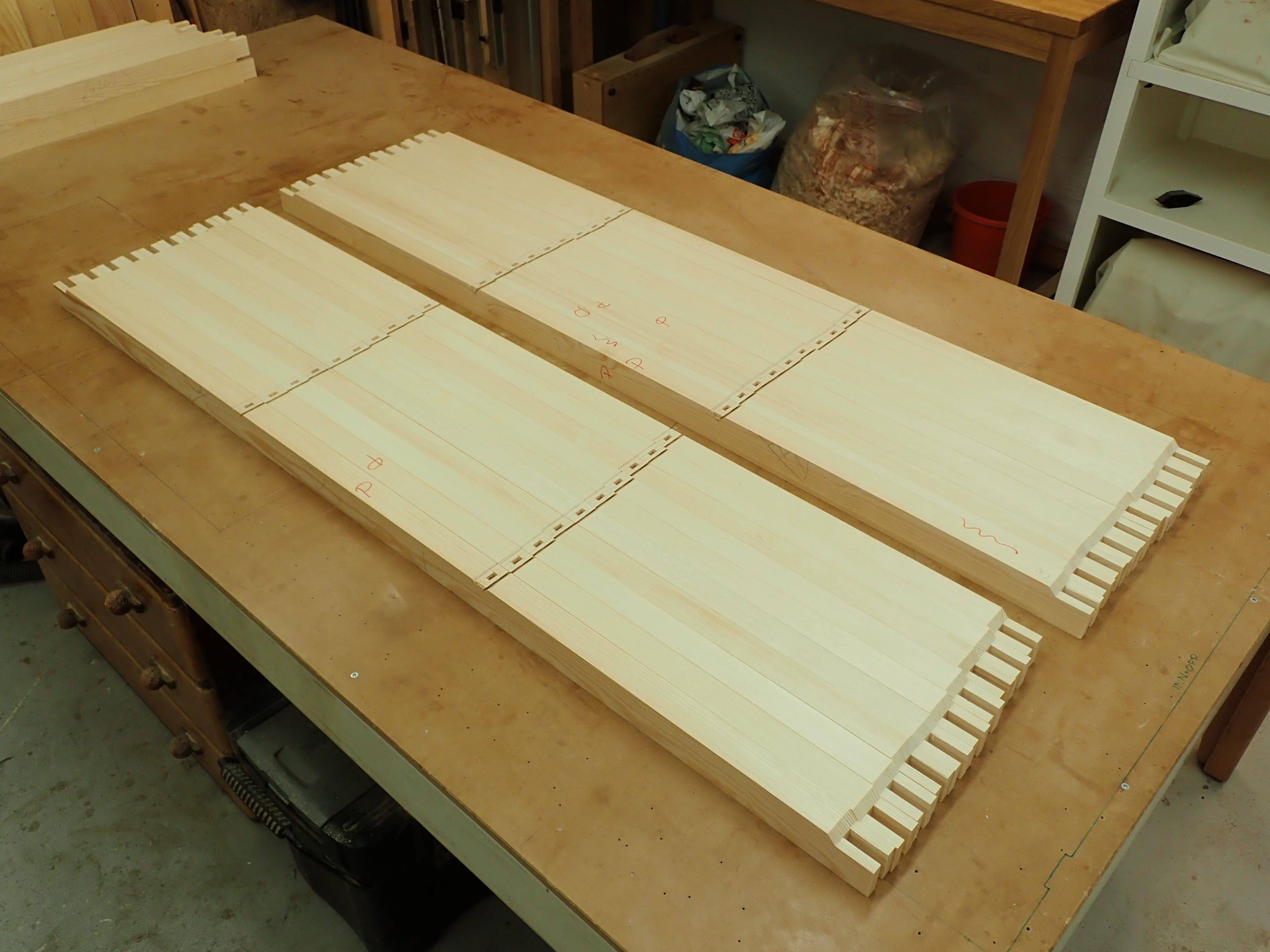

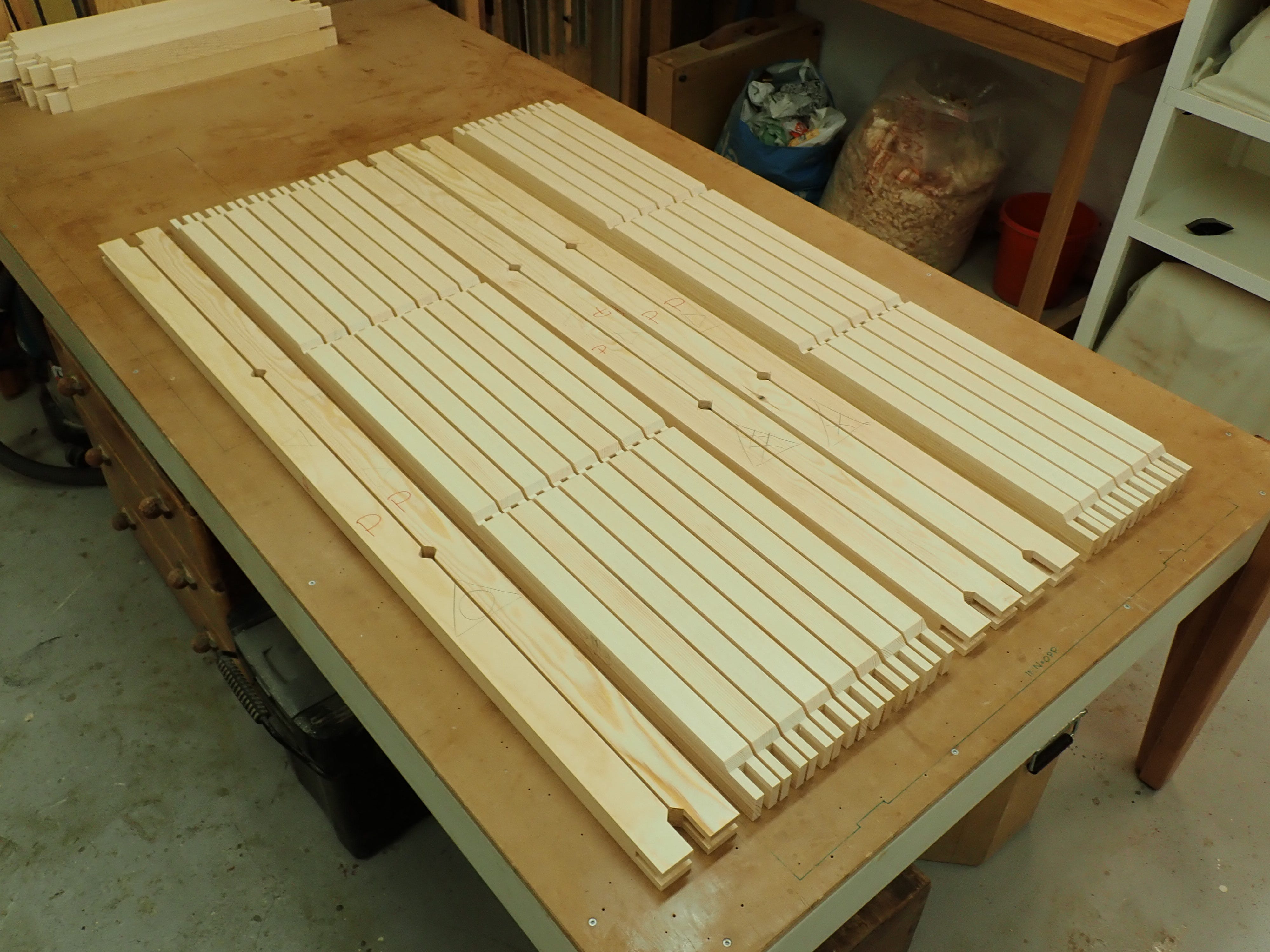

Now you should have a collection of stiles looking like this …

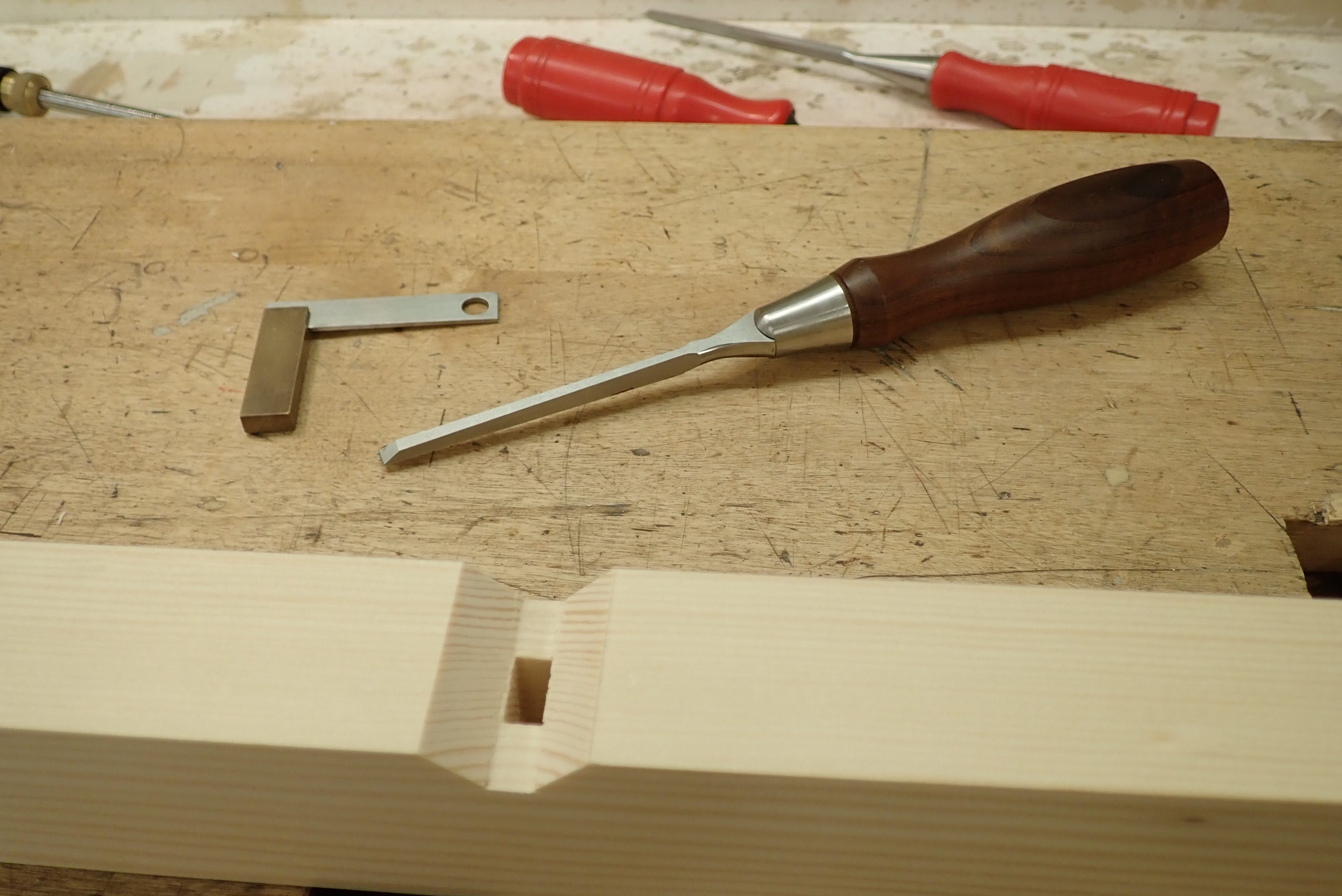

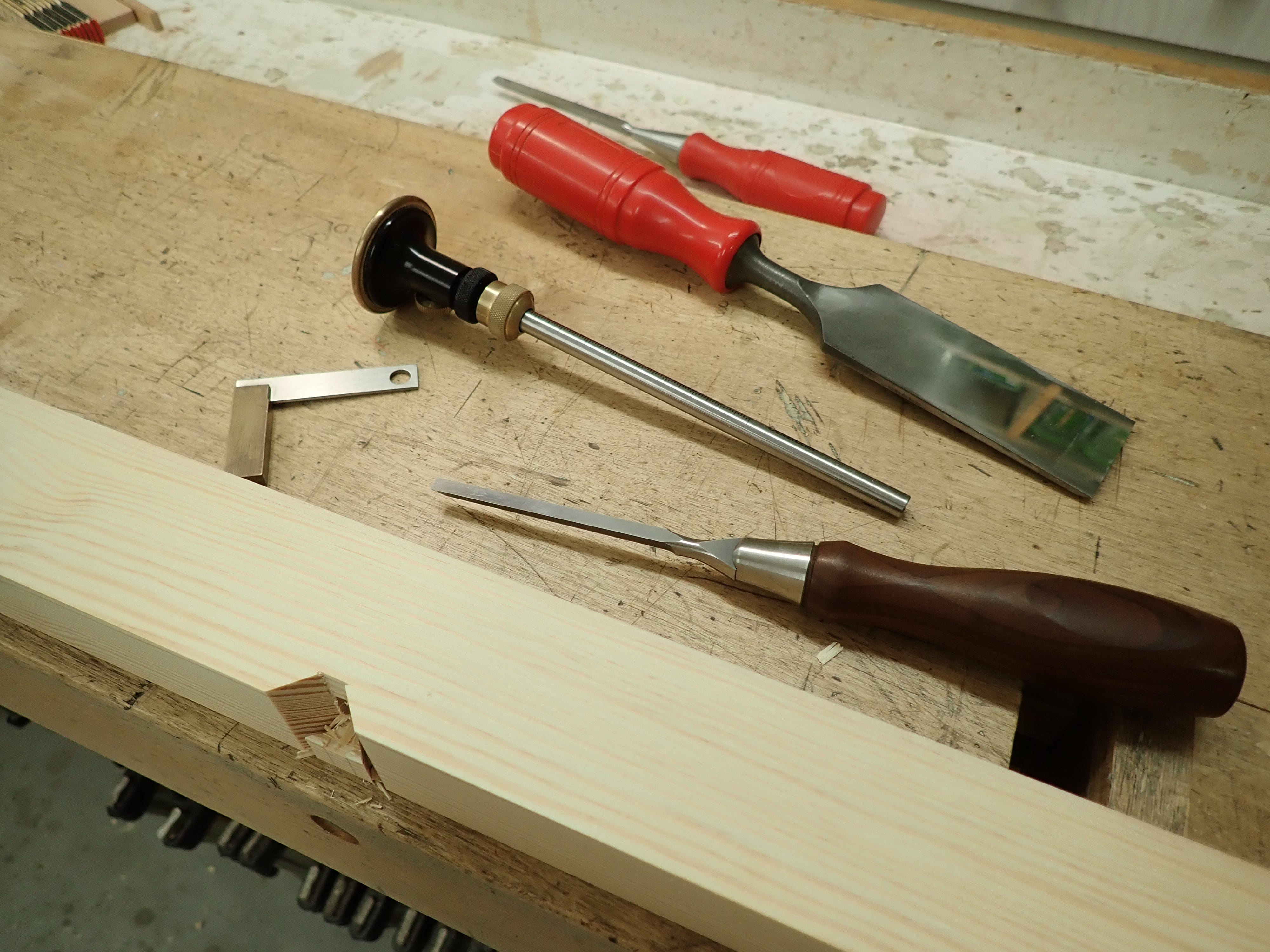

… and all you need to do is to get rid of the surplus. A chisel will do nicely.

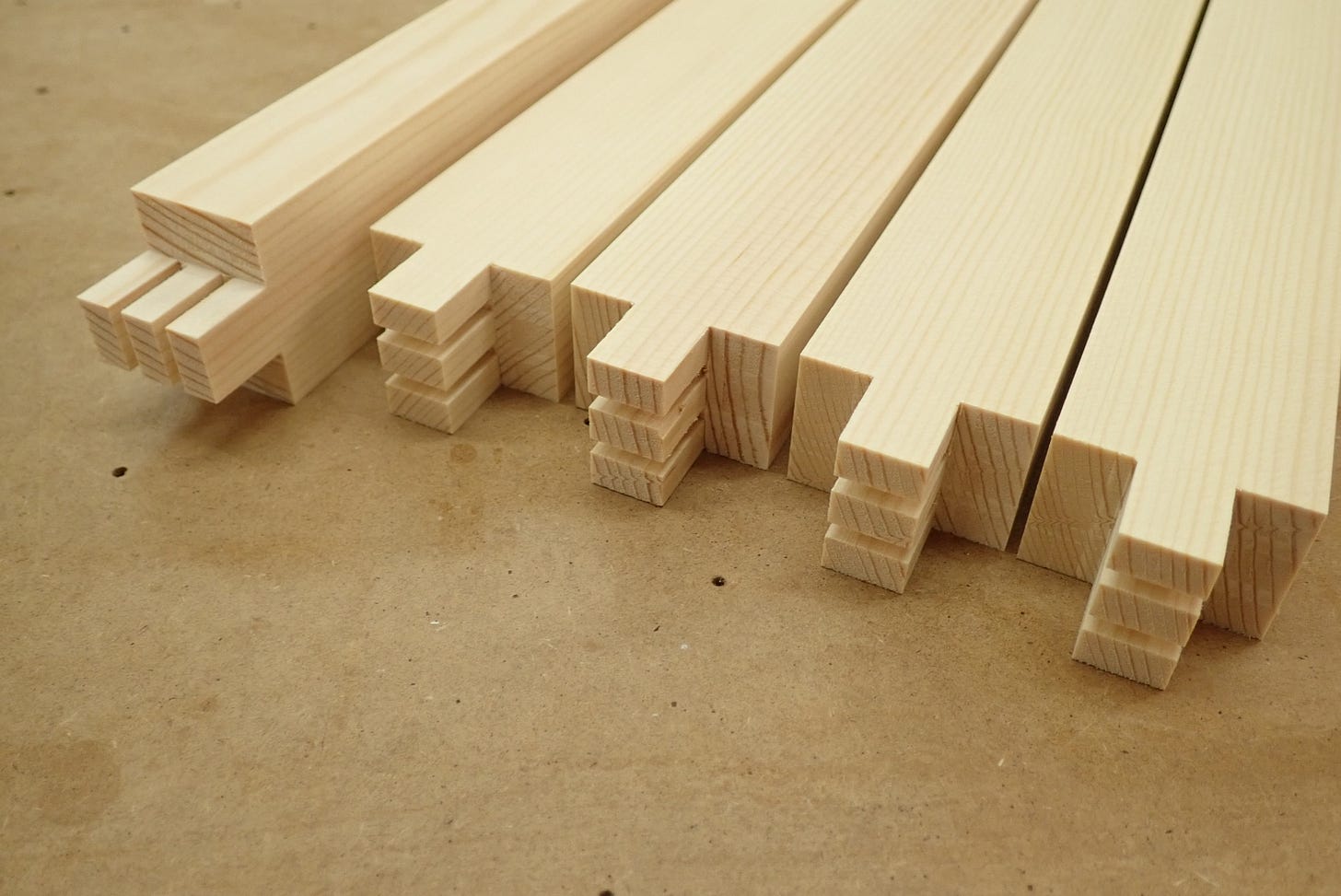

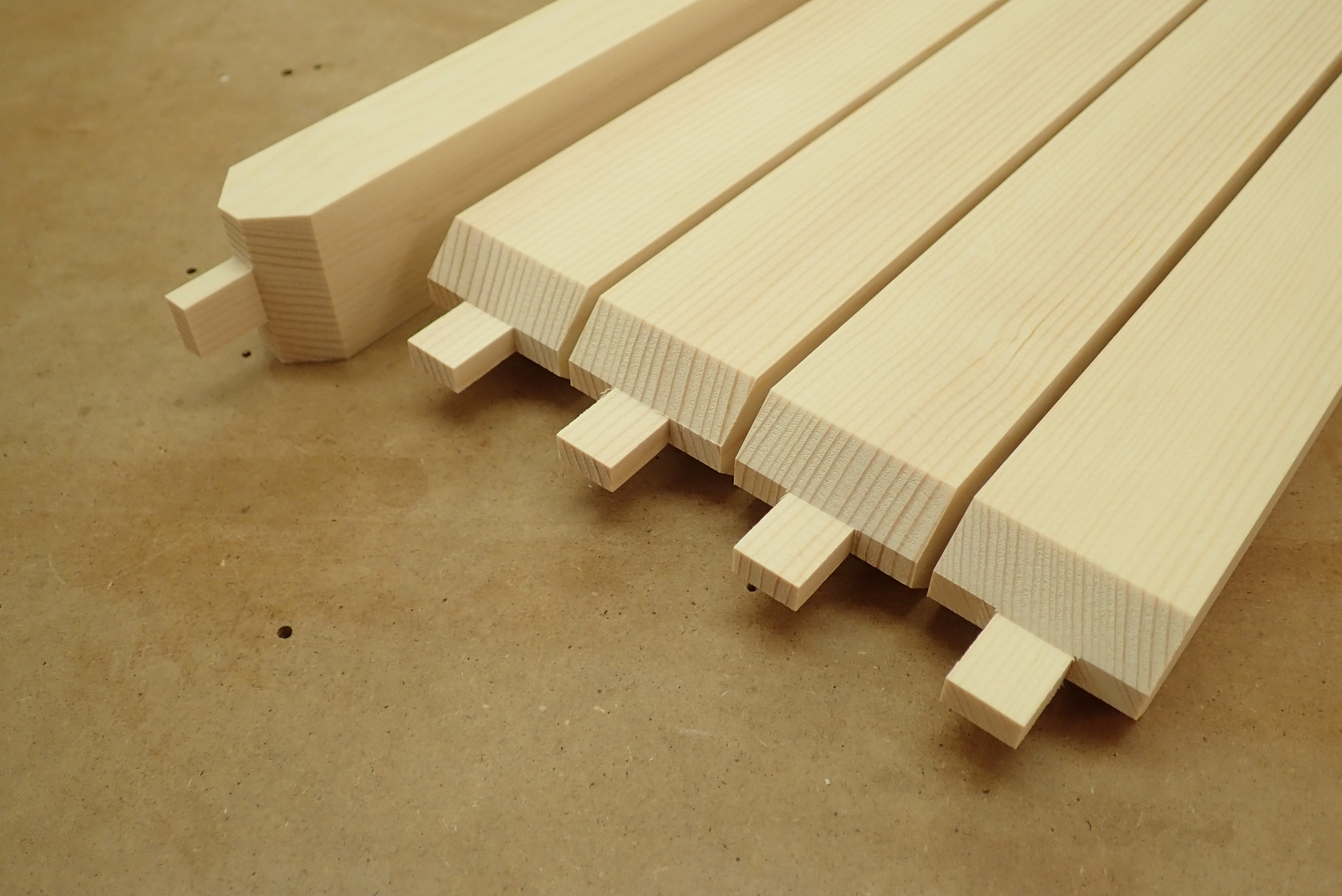

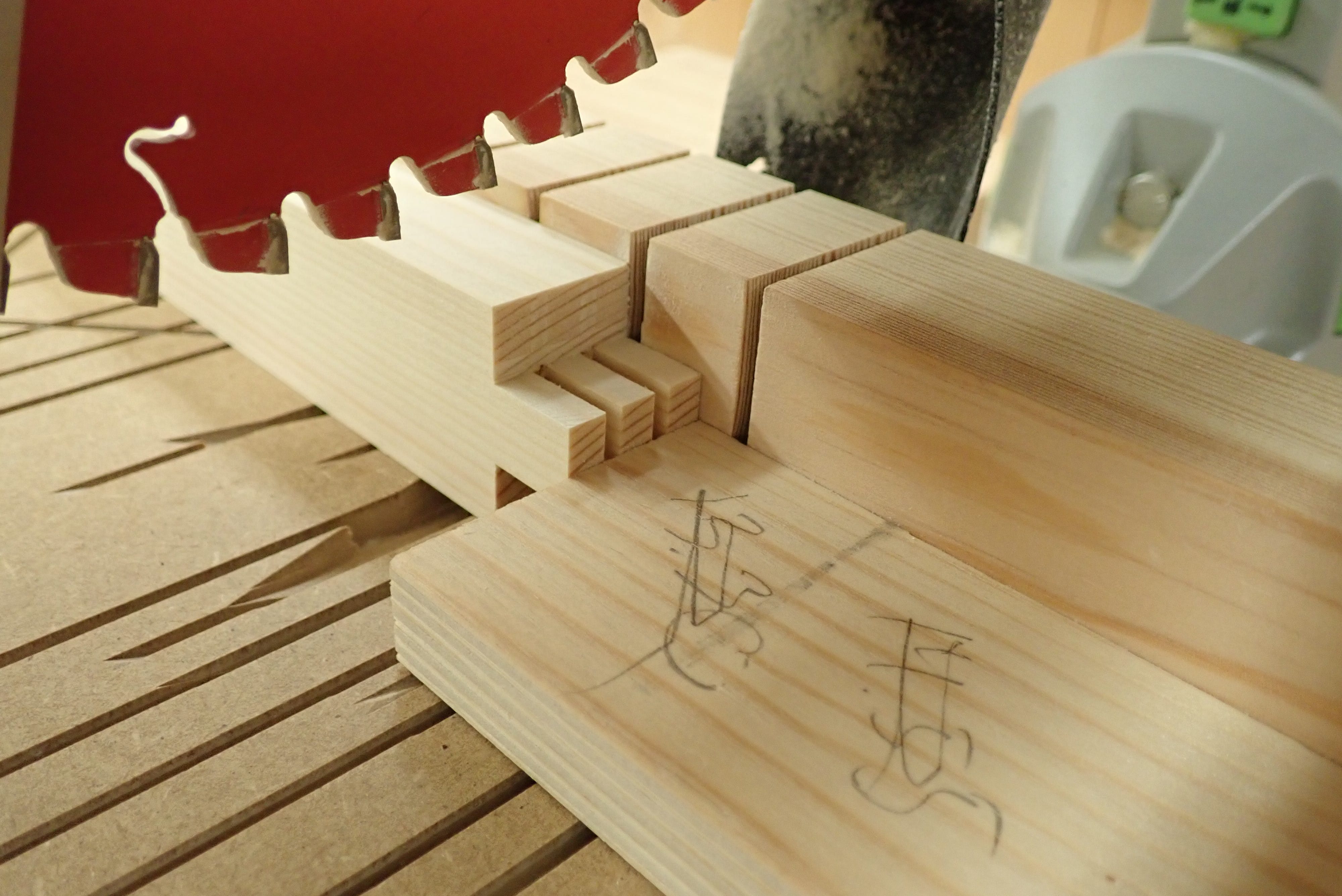

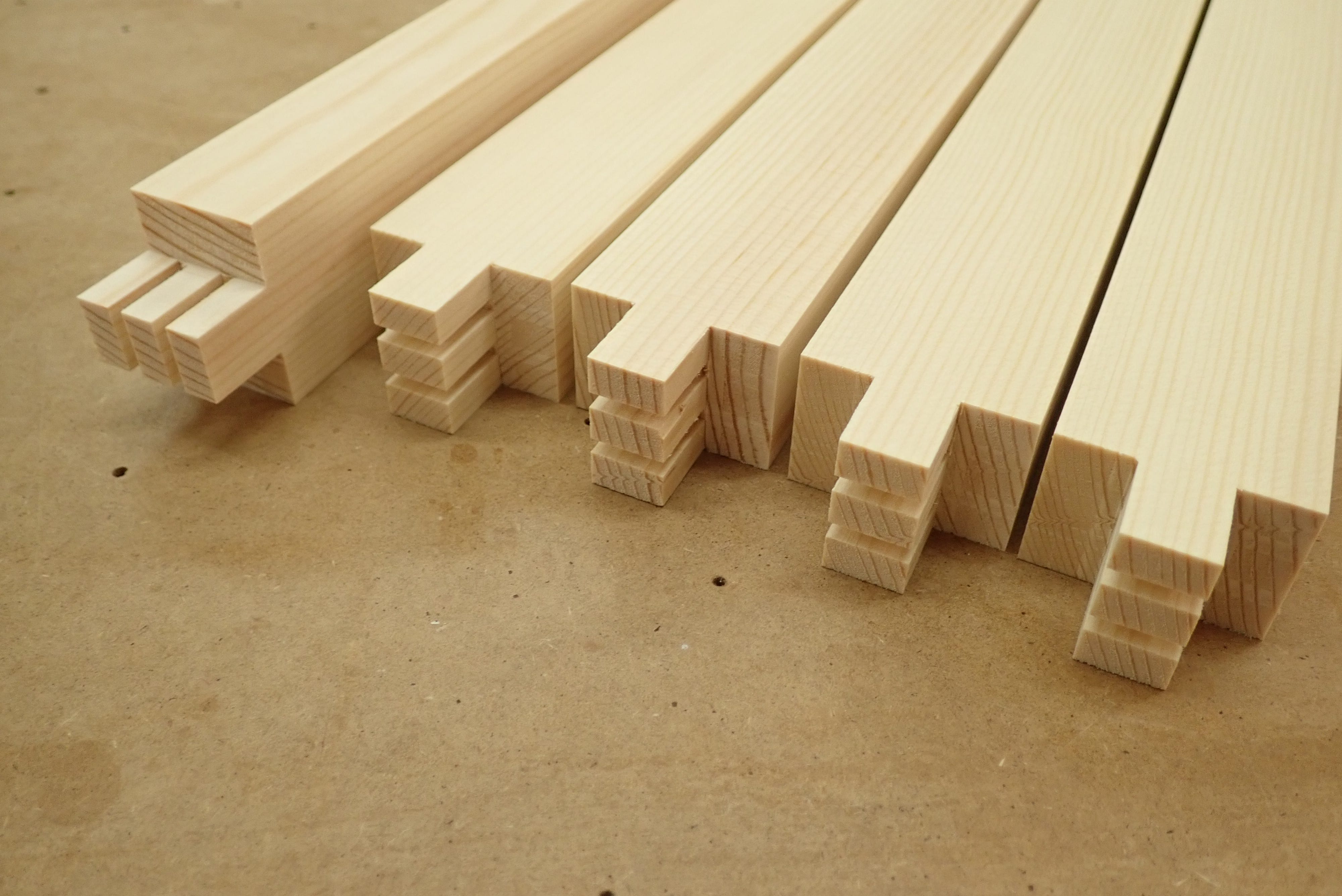

Next: cutting tenons on the ends of the muntins. I’ve shown in previous posts how I use the spindle moulder to cut tenons, so I’ll just rattle through the pictures, trusting you to follow the progression.

It’s a piece of piss, really …

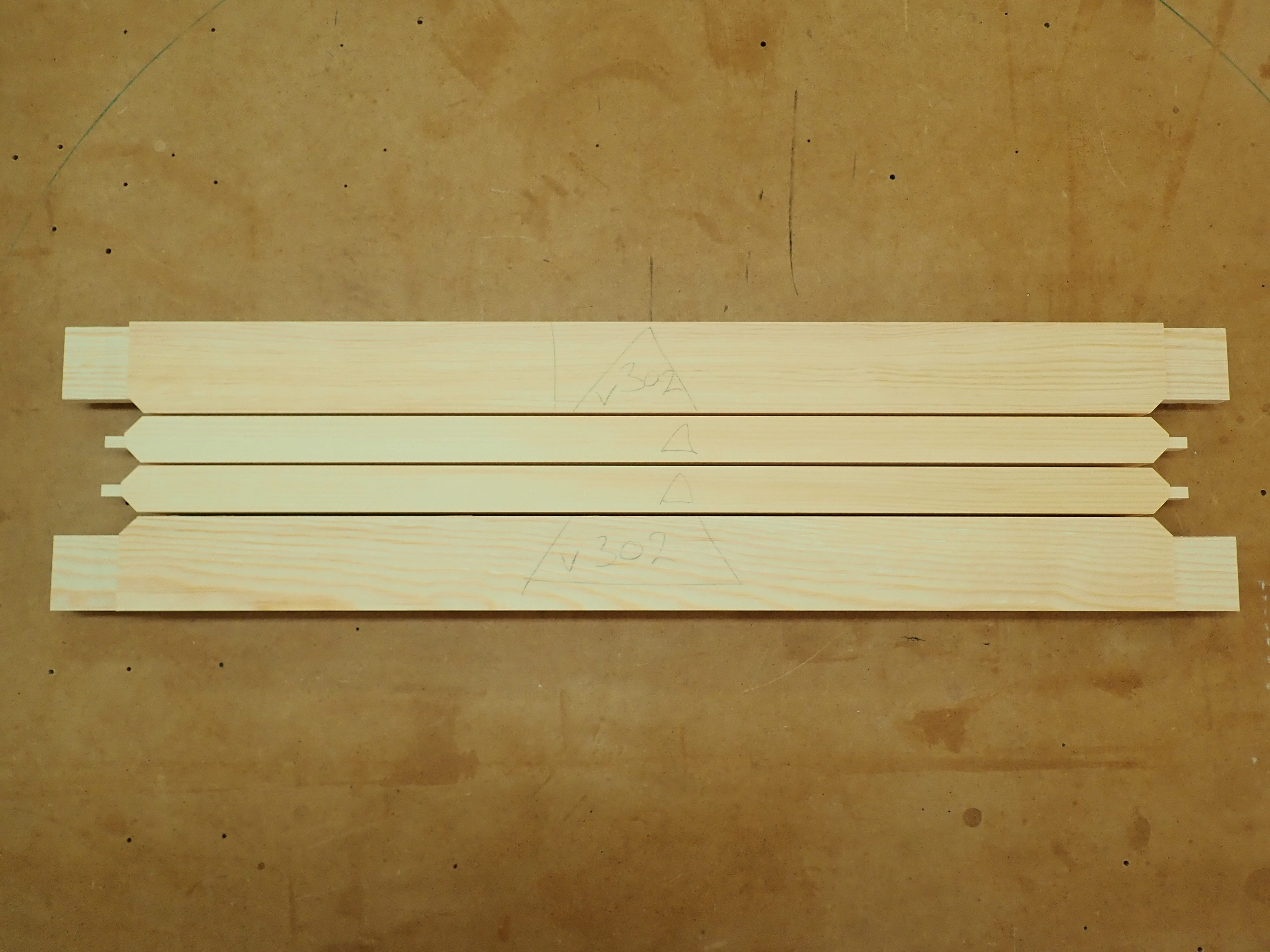

The length of the muntins should be the same as the rails — from shoulder to shoulder.

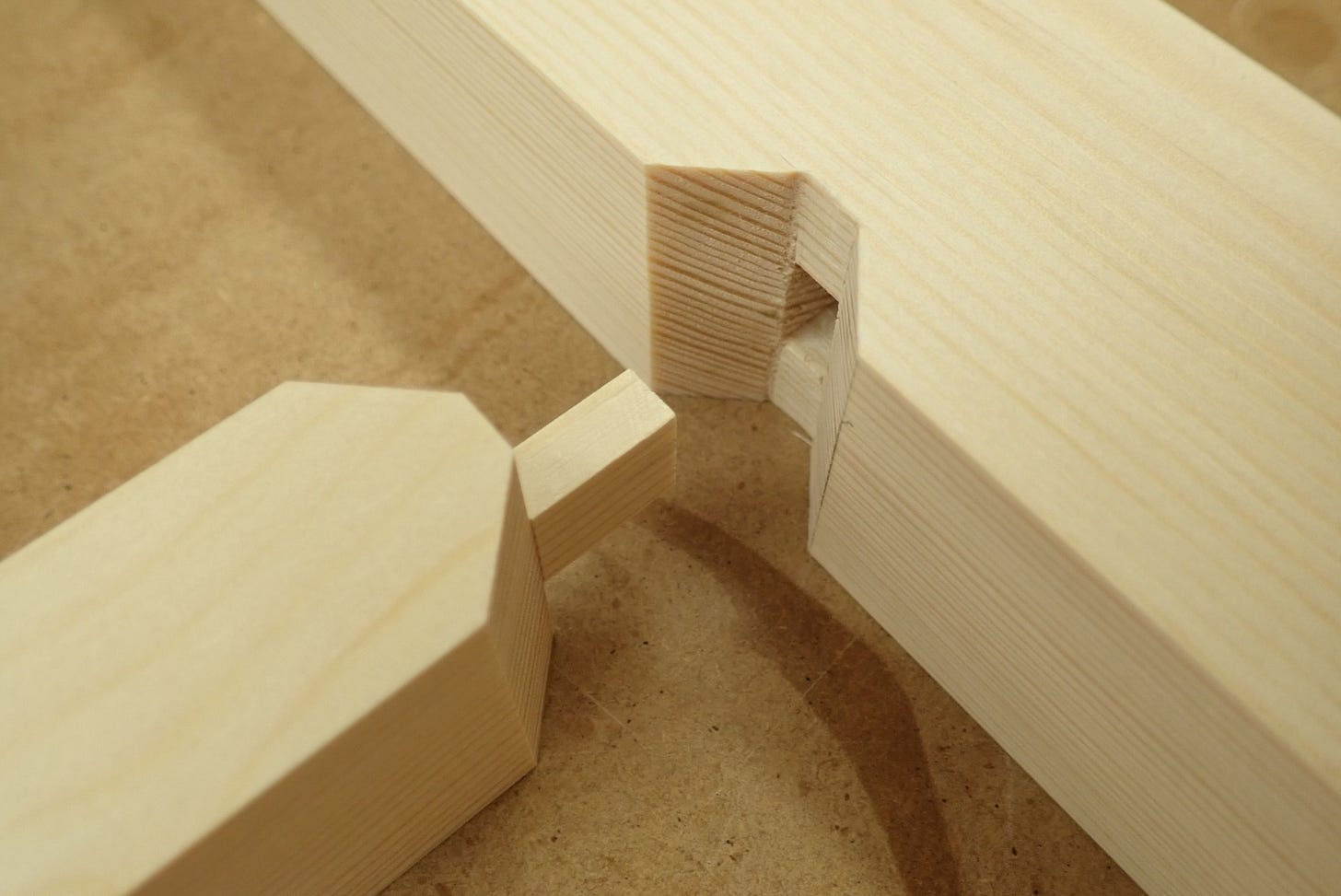

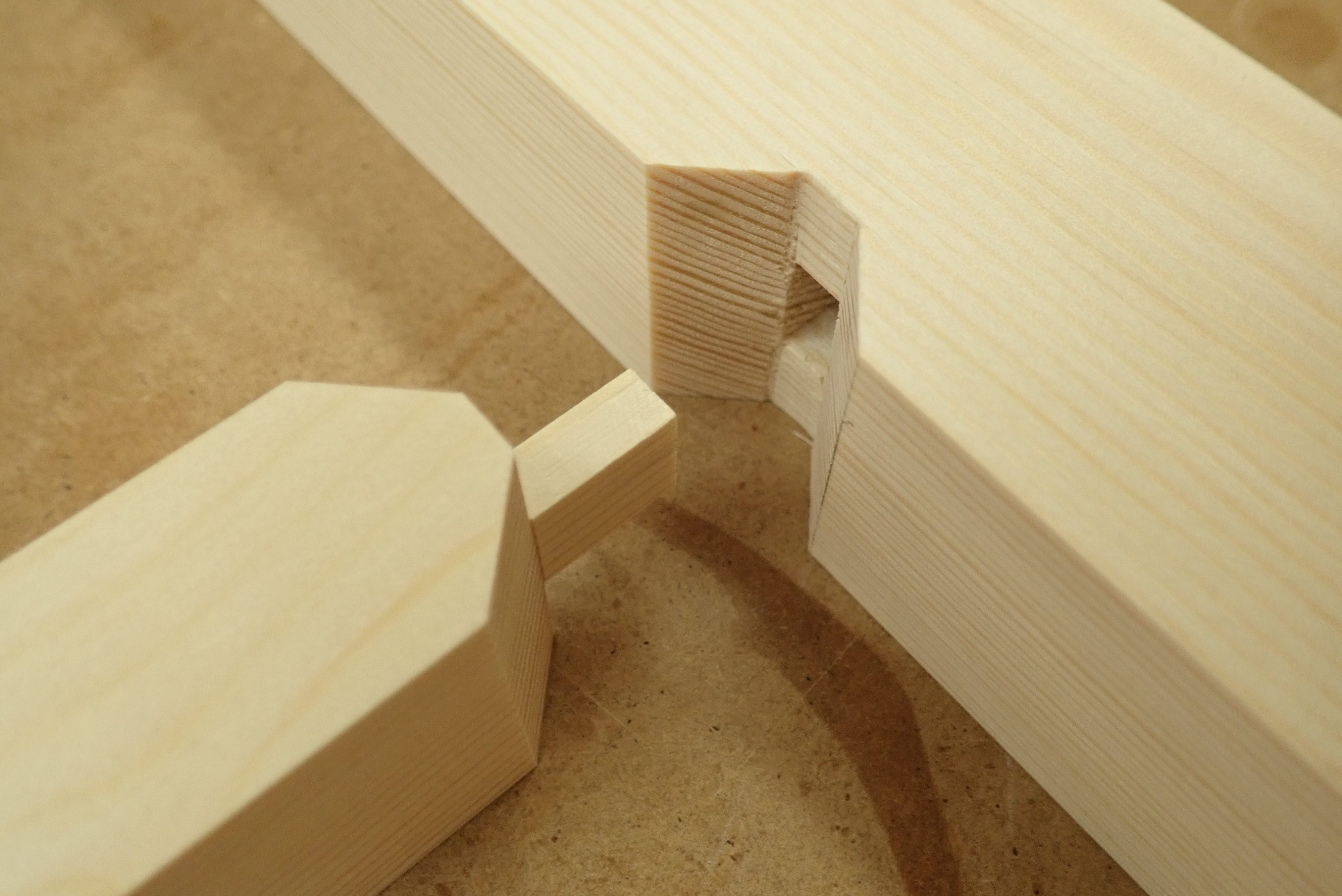

Without becoming unduly lewd, the basic principle is as old as time itself.

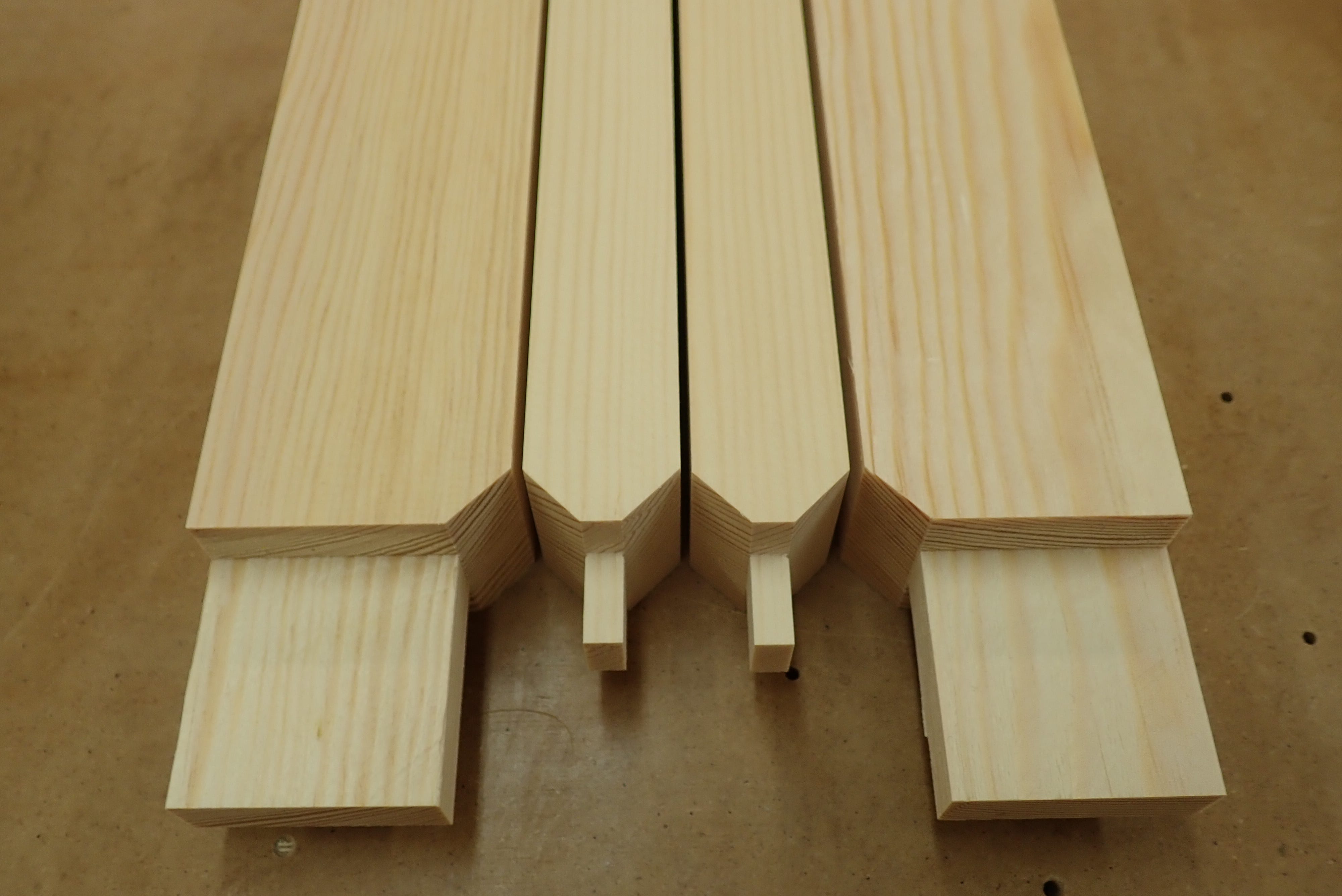

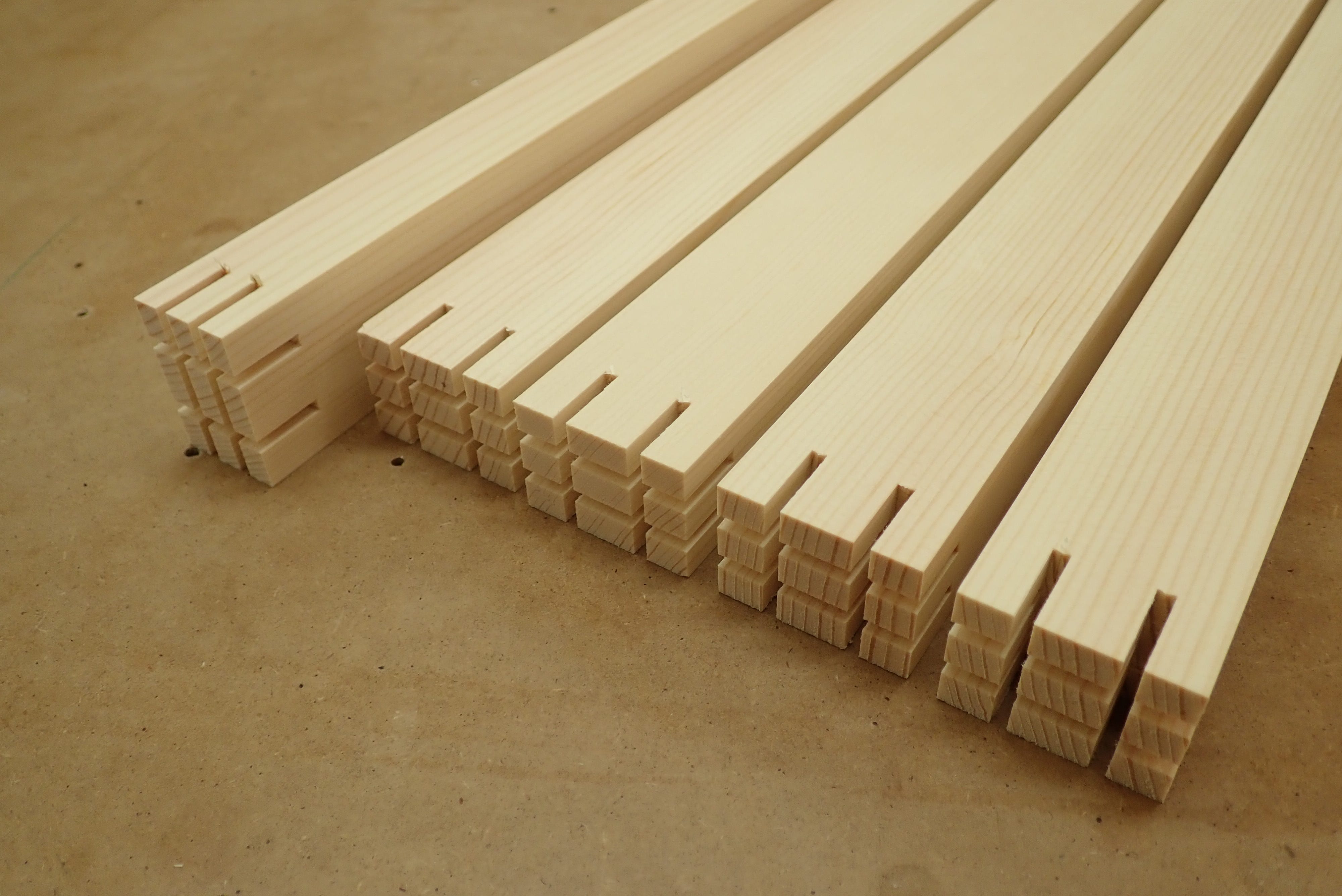

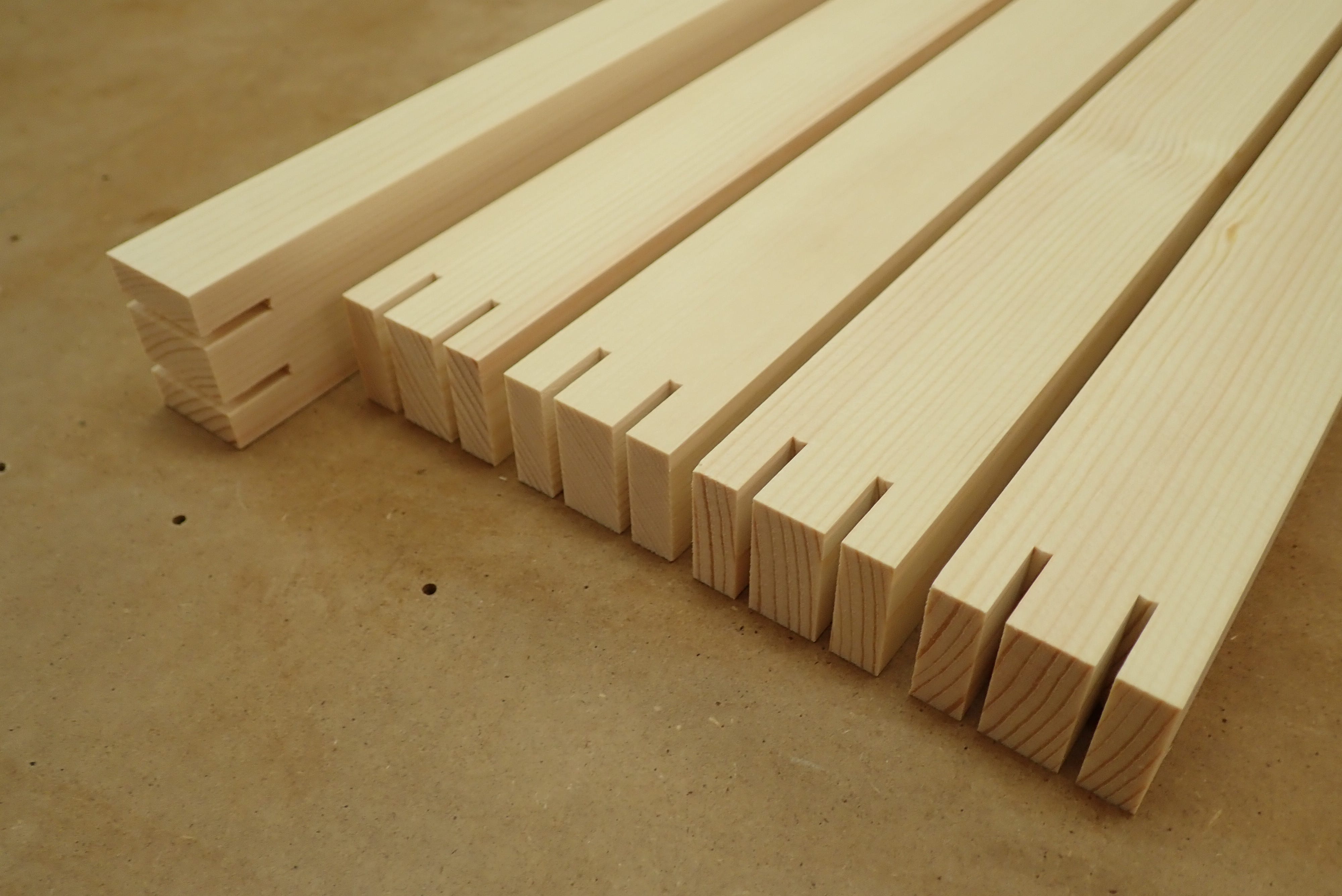

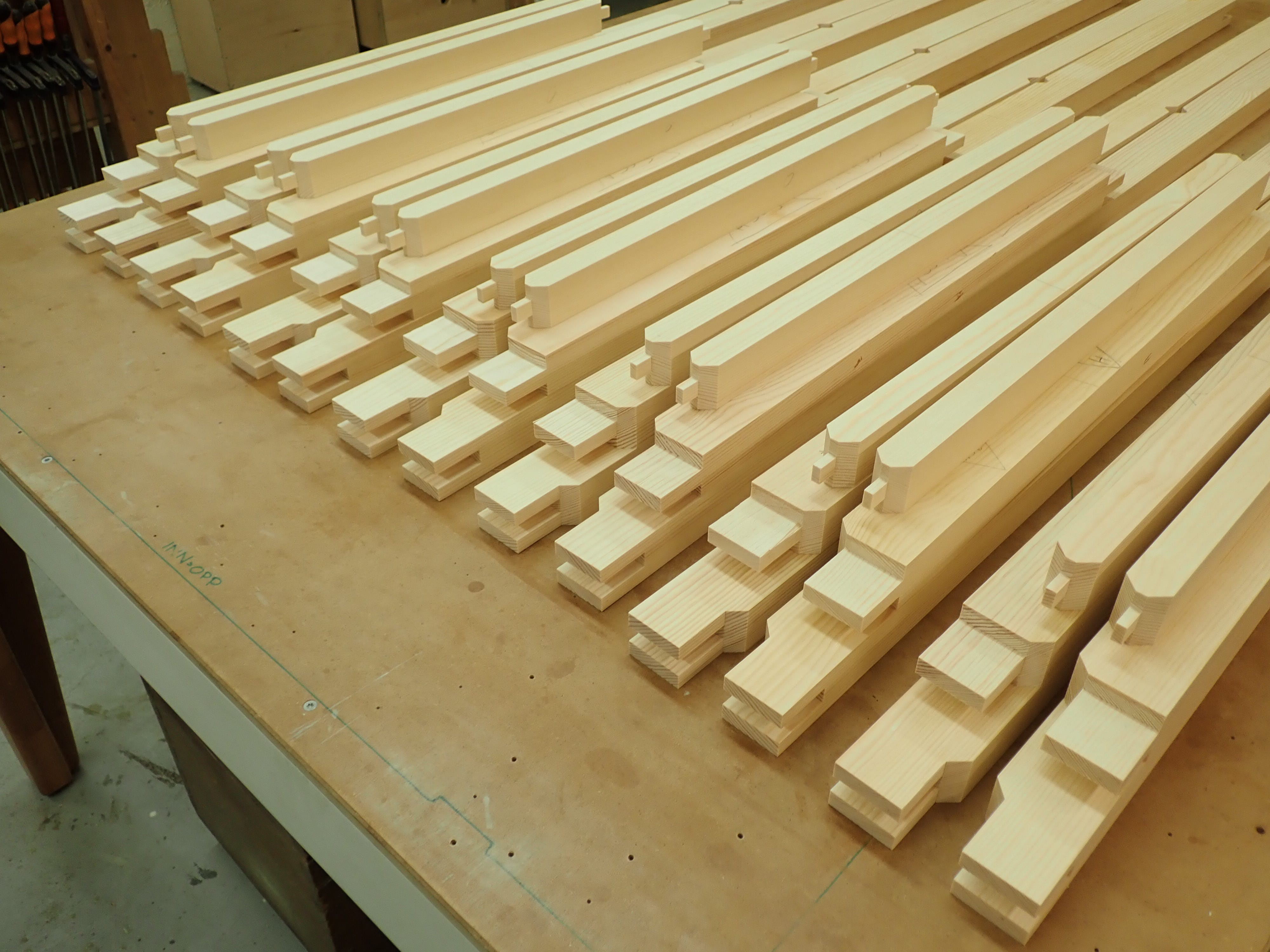

And before you know it, your workshop has spawned a multitude of mating parts.

Joinery: check!

Next: routing rebates and profiles

***
